Tootja info
| Gross weight | 25.00 kg |
| Jaotuskarp | IP68 |
| Mooduli kaal | 23.5 kg |
| Mooduli mõõdud | 1961 x 1134 x 30 mm |
| Producer | TrinaSolar |
| Producer product name | VERTEX S+ NEG18R.28 |
| Raami mõõdud | 30 mm |
| Võimsuse tolerants | 0/+5 W |
| Kasutamistemperatuur (T-T) | -40 to +85 °C |
| Lenduvate orgaaniliste ühendite (VOC) temperatuuri koefitsent | -0.24%/°C |
| PMAXi temperatuuri koefitsient | -0.29%/°C |
| Temperature Coefficient of ISC | 0.04%/°C |
| Quantity per shipping carton | 36 pc(s) |
| Embeeded battery | Ei |
| Gross depth (mm) | 1961.00 mm |
| Gross height (mm) | 300.00 mm |
| Gross width (mm) | 1134.00 mm |
| Packing quantity | 1.00 pc(s) |
| Palette Qty | 36 pc(s) |
| Paper/Pasteboard | 1200.00 g |
| Plastic (No PET) | 300.00 g |
| Tare weight (kg) | 1.50 kg |
| Volume (m3) | 0.67 m³ |
| WEEE tax | Jah, CL109:4B:2024-01-01 |
| Toote valmistamise garantii | 25 year(s) |
| Võimsuse aastane vähenemine | 0.4 % |
| Võimsuse vähenemine esimese aasta jooksul | 1 % |
| Warranty | 300 month(s) |
Lisainformatsioon
| Kaubamärk | TRINASOLAR |
|---|---|
| MPN | TSM-NEG18R.28 505W |
| EAN kood | 2000001376263 |

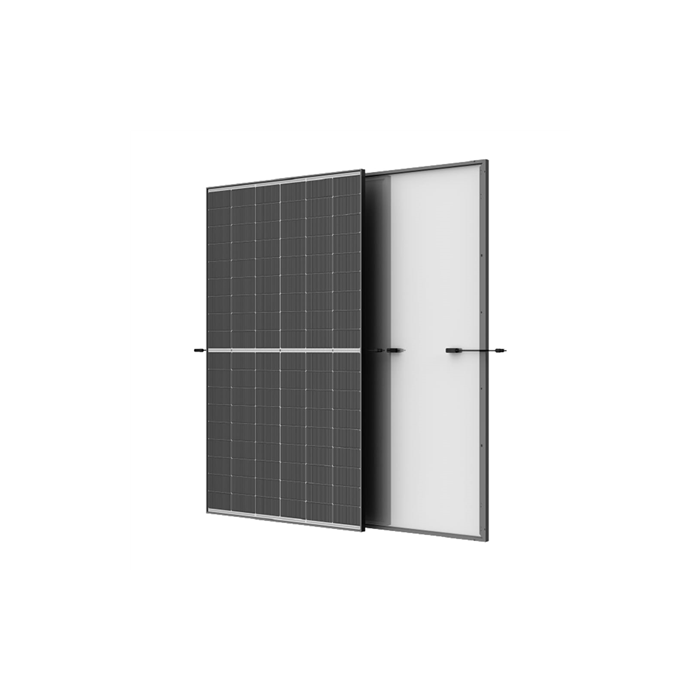

| Toote tüüp | N-Type i-TOPCon MONOFACIAL Dual Glass Monocrystalline |
| Netokaal (kg) | 23.50 kg |
| Võimsus (W) | 505 W |
| Avatud ahela pinge (V) | 40.3 V |
| Lühisahela vool (A) | 15.89 A |
| Tõhusustegur STC (%) | 22.7 % |
